Picture Hanging Systems - „Made in Germany“
Picture Hanger for up to 80 kg

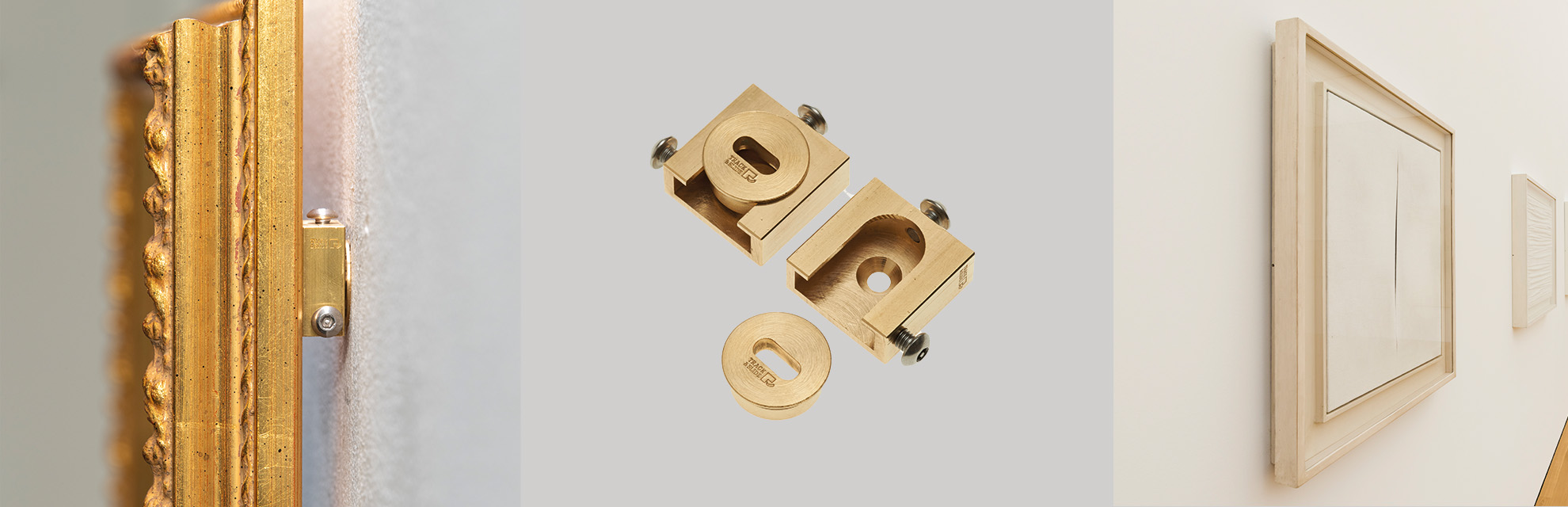

TRACK & SLIDE® S L/R
TRACK & SLIDE® S L/R was developed for hanging and securing small to medium-sized objects onto the wall.
It has a mechanical anti-theft function.
The TRACK element can be turned inward after the object is mounted to the wall.
TWO ELEMENTS (left and right - L and R) are required per painting.
Complies with the recommendations from the "Guideline for Museums and Exhibition Houses", VDS, Germany.
"Made in Germany" high quality, safety and sustainability for your individual needs.
Art. No. 92525 TRACK & SLIDE® S L/R
Picture Hangers for up to 160 kg per Object
- Montage TRACK left/right on frame/object
- Dimensions: 25 x 25 x 10 mm
- Material: brass
- Distance to Wall: 10 mm
- Slide Ø = 20 mm, h = 7,5 mm in the wall
- Adjustment screw, slight height adjustment possible
- Locking ccrew
- Weight bearing capacity: up to 80 kg per unit**
Accessories and information
Montage - Tool
MONTAGE SET
Article No. 9000
General Information:
- Tool required for assembly:
Art. No. 9000 MONTAGE SET* - Picture Transportation possible *
- Before fixing the Slides in the wall, check the masonry on site and select the appropriate anchors and screws.
- *see Usage Table ACCESSORIES
- **tested by TU Munich
Downloads:
Mounting Instructions
Wall Hanging small/middle » up to 80 Kg - TRACK & SLIDE® S
