Double Wall Track for Wire Hanging

T&S Double Wall Track for Wire Hanging

Gallery Rails

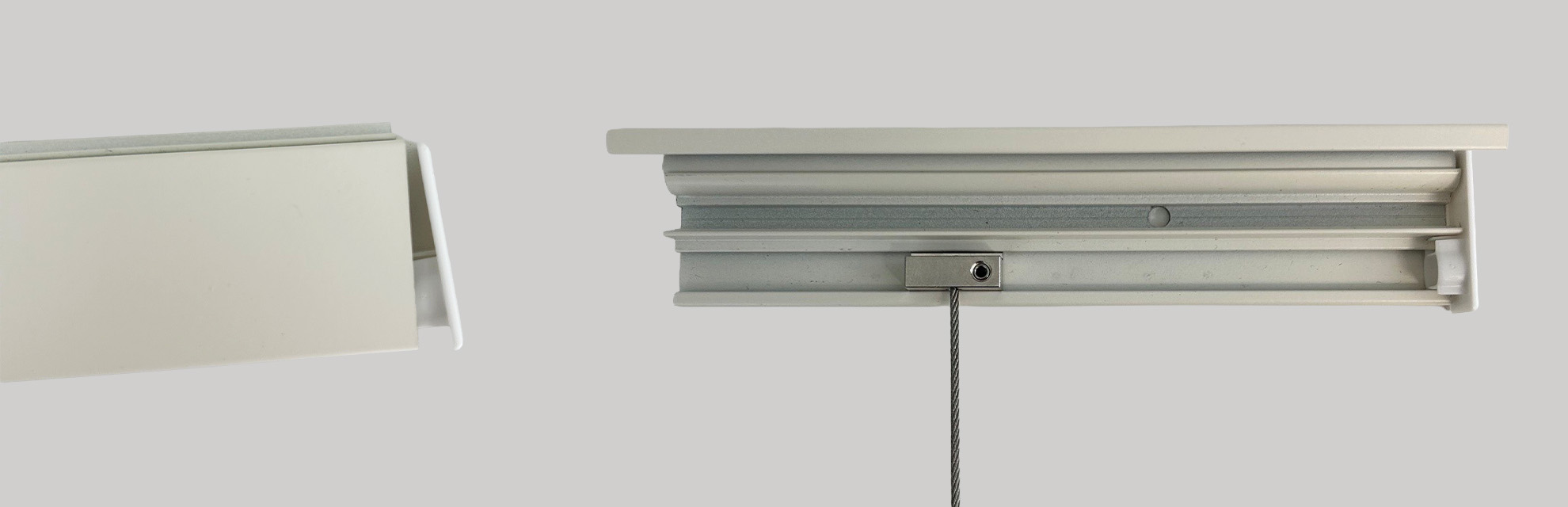

Our T&S Double Wall Track consists of two parts:

A bottom track, which is mounted directly to the wall, and a top rail, which conceals the bottom track.

SLIDES, End caps, Picture Hangers, and Wires are sold separately.

Double Wall Track

Art. No. 00001 | TRACK & SLIDE® Double Wall Track

Wire Hanging Double Wall Track, up to 80kg

  • Bottom/Top Tracks: Aluminum, RAL color 9010 white.
  • Other colors upon request and surcharge
  • For T&S wire cables Ø 1.0 - 2.0 mm
  • Slide and bottom Track concealed
  • Direct mounting to the wall
  • Rec. working load per object with 2 wire ropes max. 80 kg
  • Dimensions: 2000 x 38 x 12 mm

55,00 € net per unit (without VAT)

65,45 € gross per unit (with 19% VAT)

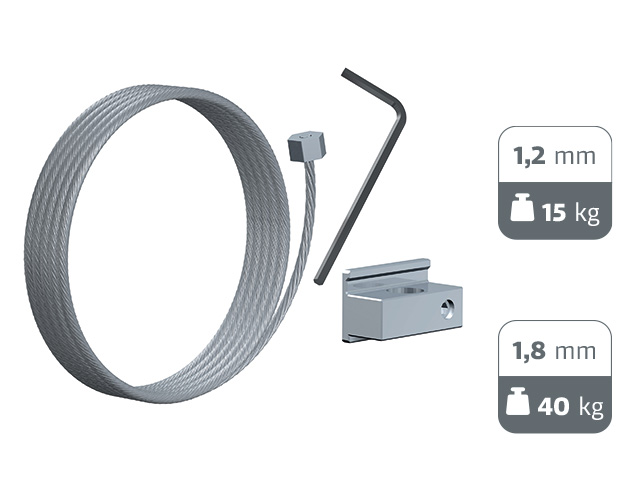

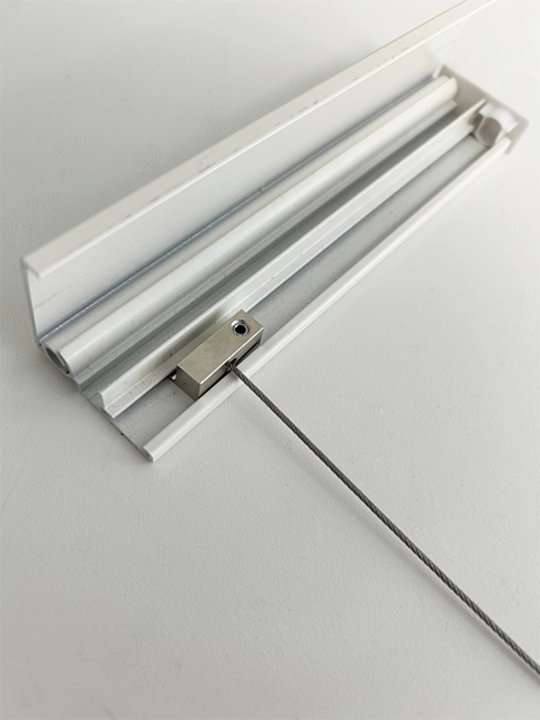

SLIDE for Double Wall Track

Art. No. 00003 | SLIDE for Double Wall Track

Slide for up to 80 kg per Object

  • Brass
  • with security screw
  • for wire cables with 1.0 – 2.0 mm Diameter

8,90 € net per unit (without VAT)

10,59 € gross per unit (with 19% VAT)

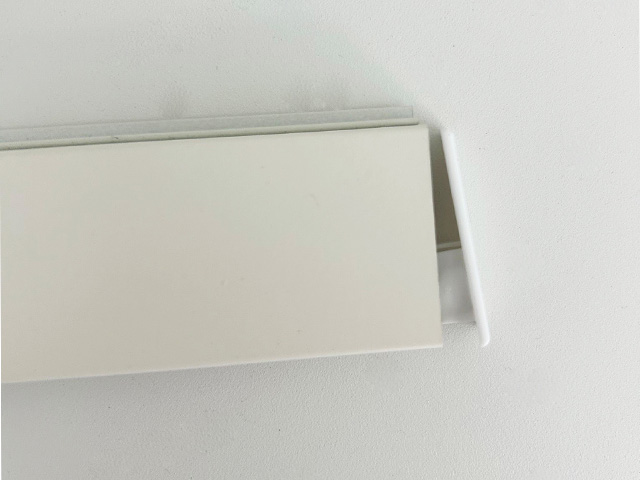

End Cap for Double Wall Track

Art. No. 00002 | End Cap for Double Wall Track

End Cap for Double Wall Track

  • White
  • Plastic

3,90 € net per unit (without VAT)

4,64 € gross per unit (with 19% VAT)



Accessories and information

Mounting Tool:

Mounting Tool Wall Track

MONTAGE TOOL
Article No. 9008

General Information:

  • Necessary Tool for fixing the SLIDE units into the track: 9008 MONTAGE TOOL*
  • Before fixing the bottom Track onto the wall, check the masonry on site and select the appropriate anchors and screws.
  • **tested by the TU Munich, Germany

Downloads:

Available soon
