Picture Hanger for up to 80 kg

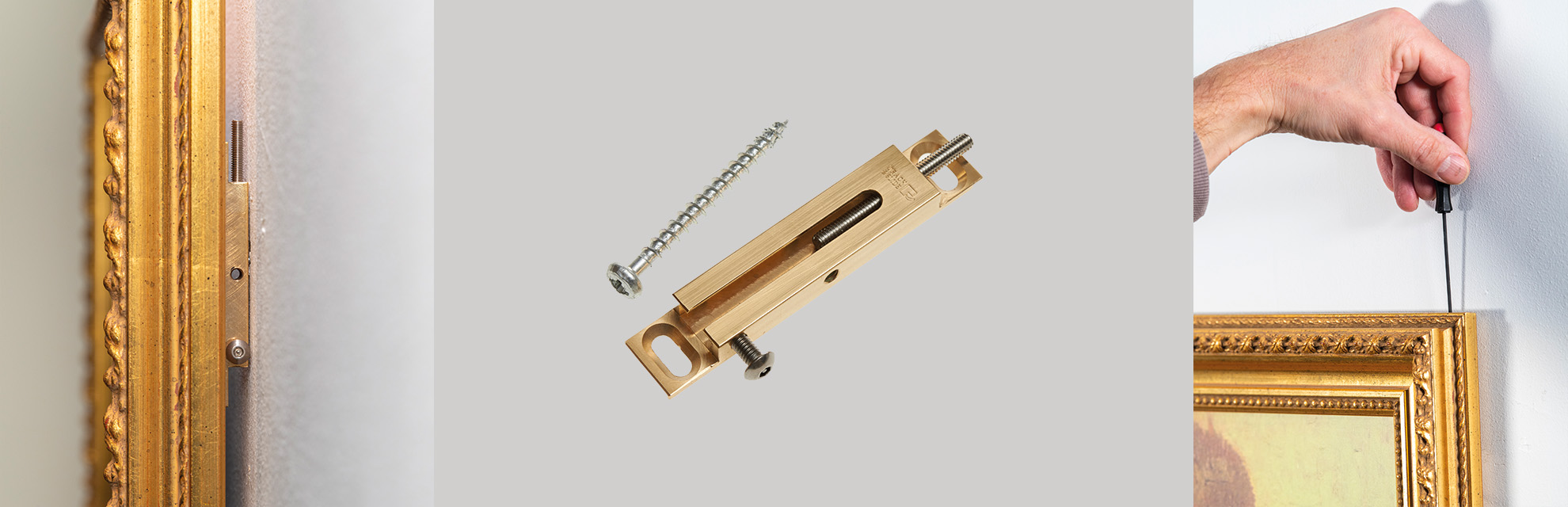

TRACK JUNIOR® M
TRACK JUNIOR® M was developed for hanging and securing medium-sized objects / paintings on the wall.
It has a mechanical anti-theft function and can be adjusted both horizontally and vertically.
TWO ELEMENTS are required per painting.. Complies with the recommendations from the "Guideline for Museums and Exhibition Houses", VDS, Germany.
"Made in Germany" high quality, safety and sustainability for your individual needs.
Art. No. 94615 Track JUNIOR® M
Picture Hangers for up to 160 kg
- TRACK mounted onto frame/object
- Dimensions: 80 x 15 x 8 mm
- Material: Brass
- Distance to wall: 8 mm
- Slide-Screw 4,5 x 50 mm in the wall
- Adjustment screw, height adjustment max. approx. 3 cm
- Locking Screw
- Weight bearing capacity: up to 80 kg per unit**
18,90 € net per unit (without VAT)
22,49 € gross per unit (with 19% VAT)
Accessories and information
Montage - Tools:
MONTAGE SET
Article No. 9000
General Information:
- Required Tool for mounting Art. No. 9000 MONTAGE SET*
- Extender suspension possible*
- Depot hanging possible*
- Transportation security possible*
- For mounting the SLIDE screws in the wall, check the masonry on site and select the suitable dowels.
- *see Usage table ACCESSORIE
- **Tested by TU Munich
Required Tool for mounting Art. Nr. 9000 ASSEMBLY SET* Extender suspension possible* Depot hanging possible* Transportation security possible* For mounting the SLIDE screws in the wall, check the masonry on site and select the suitable dowels. *see Usage table ACCESSORIES **Tested by TU Munich
Downloads:
Mounting Instructions:
