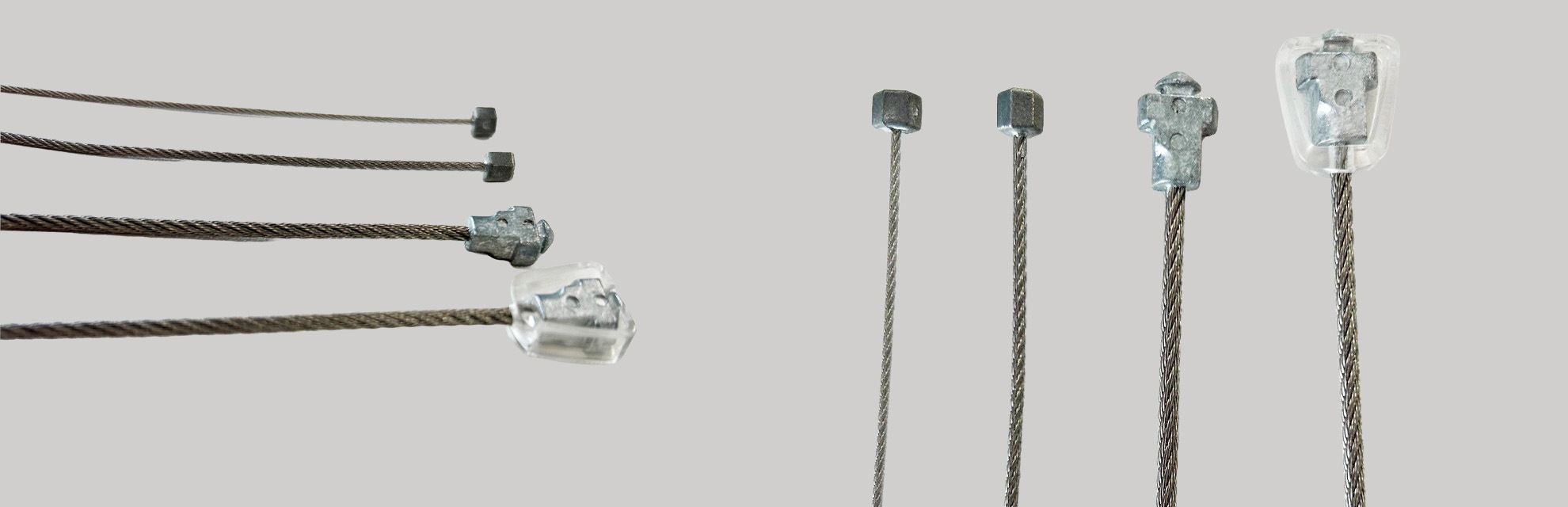

Steel Wire Cables 1.0 to 3.0 mm from Track&Slide®
All wire cables are made of high-quality steel.
Consists of 7x7 (49) single wires. Quality: 2300 N/mm².
The wire ropes are cut to the desired length, one end is crimped (e.g. nipple, loop, eyelet) (crimping pressure: 20t), the other end is tin-plated. The wire cables are manufactured especially for the customer and are therefore excluded from return.
Please contact us directly when ordering.
Art. No. 74010 | Wire Cable 1.0 mm Diameter
Wire Cables / Wire Hanging up to 10 Kg
- 2300 N/mm2
- Weight load per wire: 10 kg
- Wire for TRACK & WIRE® XS 1,2, HOOK4WIRE 1,5
- Price per meter
3.45 € net per meter (without VAT)
4.11 € gross per meter (with 19% VAT)
Art. No. 74012 | Wire Cable 1.2 mm Diameter
Wire Cables / Wire Hanging up to 15 Kg
- 2300 N/mm2
- Weight load per wire: 15 kg Wire for TRACK & WIRE® XS 1,8, HOOK4WIRE 1,5
- for TRACK & WIRE® XS 1,8, HOOK4WIRE 1,5
- Price per Meter
3.95 € net per meter (without VAT)
4.70 € gross per meter (with 19% VAT)
Art. Nr. 74015 | Wire Cable 1.5mm Diameter
Wire Cables / Wire Hanging up to 25 Kg
- 2300 N/mm2
- Weight load per wire: 25 kg Wire for TRACK & WIRE® XS 1,8, HOOK4WIRE 1,5
- for TRACK & WIRE® XS 1,8, HOOK4WIRE 1,5
- Price per Meter
4.05 € net per meter (without VAT)
4.82 € gross per meter (with 19% VAT)

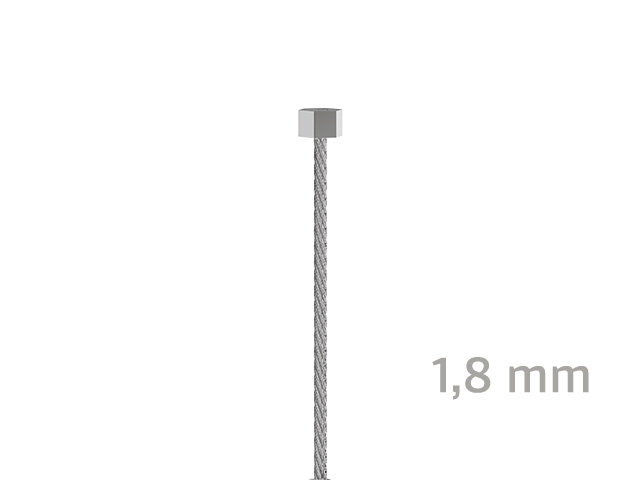

Art. No. 74018 | Wire Cable 1.8 mm Diameter
Wire Cables / Wire Hanging up to 30 Kg
- 2300 N/mm2
- Weight load per wire: 25 kg
- Wire for TRACK & WIRE® XS 1,8, HOOK4WIRE 1,8
- Price per Meter
4.05 € net per meter (without VAT)
4.82 € gross per meter (with 19% VAT)
Art. No. 74020 | Wire Cable 2.0 mm Diameter
Wire Cables / Wire Hanging up to 40 Kg
- 2300 N/mm2
- Weight load per wire: 40 kg
- Wire for TRACK & WIRE® XS-M 2,0, HOOK4WIRE 3,0
- Price per Meter
4.45 € net per meter (without VAT)
5.30 € gross per meter (with 19% VAT)

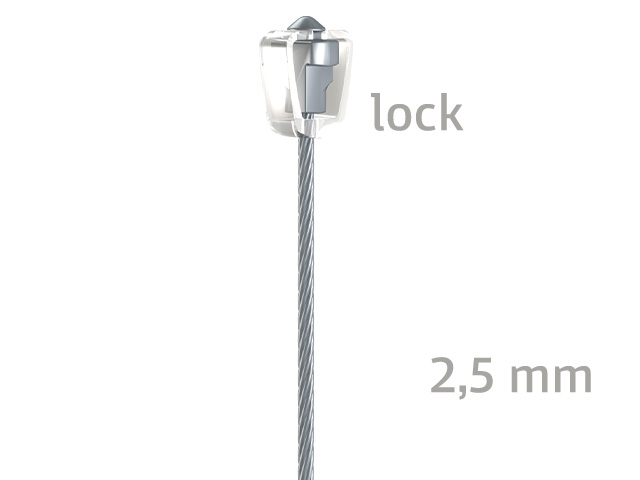

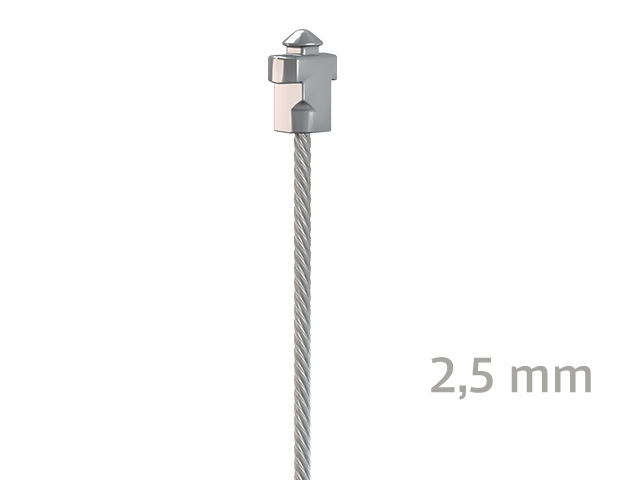

Art. No. 74025 | Wire Cable 2.5 mm Diameter
Wire Cables / Wire Hanging up to 70 Kg
- 2300 N/mm2
- Weight load per wire: 70 kg
- Wire for TRACK & WIRE® XS-PL 3,0, HOOK4WIRE 3,0
- Price per Meter
5.25 € net per meter (without VAT)
6.25 € gross per meter (with 19% VAT)
Art. No. 74030 | Wire Cable 3.0 mm Diameter
Wire Cables / Wire Hanging up to 80 Kg
- 2300 N/mm2
- Weight load per wire: 80 kg
- Wire for TRACK & WIRE® XS-PL 3,0, HOOK4WIRE 3,0
- Price per Meter
5.25 € net per meter (without VAT)
6.25 € gross per meter (with 19% VAT)
Accessories and information
Mounting Tool:
MONTAGE TOOL Artikel No. 9008
For fastening the security screw in the SLIDES for the T&S Double Wall Track & T&S Heavy Duty Wall Track.
General Information:
- Information on weight loads only applies if T&S hangers are also used with the wire cables.
- Which wire diameter to choose depends on the weight of the object/painting.
- Always use 2 wire ropes per object/painting.
- We recommend using our T&S Double Wall Track, T&S Heavy Duty Track, and T&S Ceiling Track along with our wire cables
- *see usage table ACCESSORIES
- **Tested by TU Munich
Downloads:
Available soon
